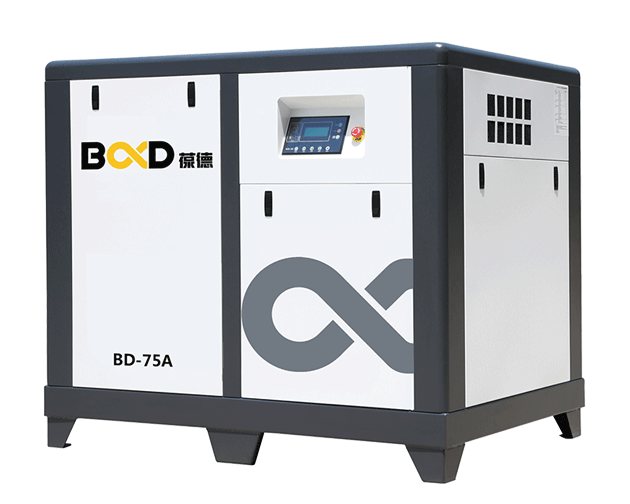

BD-75A
Product name:BD-75A
Product description:
- Product introduction
●The latest airend
●Perfect intelligent inverter technology
●Less maintenance and utilizing cost
●Lots of technology patents
Model | Mpa | BD-75A |
Free Air Delivery/Discharge Pressure(m³/min) | 0.7 | 10.5 |
0.8 | 9.8 | |
1.0 | 8.6 | |
1.25 | 7.6 | |
Ambient Temperature | ℃ | -5~+40℃ |
Cooling Model | Air or Water-Cooling | |
Discharge Temperature | ℃ | ≤Environment Temp+10℃(Air-Cooling) <40℃(Water-Cooling) |
Lubricant | Liter | 65 |
Noise | dB(A) | 68±2 |
Drivin way | Direct drive | |
Electricity | 220V/380V/415/3ph/50Hz/60Hz | |
Power | KW | 55 |
Straing Method | Y-△Starter | |
Dimension(Length*Width*Height) | mm | 1750*1150*1500 |
Weight | kg | 1038 |
Air Outlet Pipe Diameter | inch | ZG2" |
