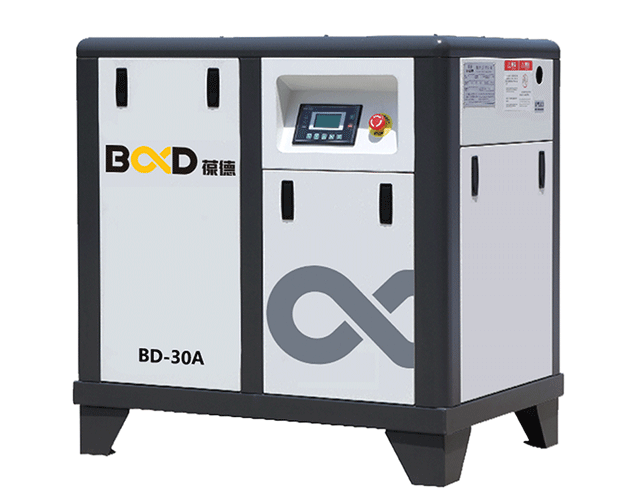

BD-30A
Product name:BD-30A
Product description:
- Product introduction
●The latest airend
●Perfect intelligent inverter technology
●Less maintenance and utilizing cost
●Lots of technology patents
Model | Mpa | BD-30A |
Free Air Delivery/Discharge Pressure(m³/min) | 0.7 | 3.8 |
0.8 | 3.65 | |
1.0 | 3.1 | |
1.25 | 2.7 | |
Ambient Temperature | ℃ | -5~+40℃ |
Cooling Model | Air or Water-Cooling | |
Discharge Temperature | ℃ | ≤Environment Temp+10℃(Air-Cooling) <40℃(Water-Cooling) |
Lubricant | Liter | 18 |
Noise | dB(A) | 66±2 |
Drivin way | Direct drive | |
Electricity | 220V/380V/415/3ph/50Hz/60Hz | |
Power | KW | 22 |
Straing Method | Y-△Starter | |
Dimension(Length*Width*Height) | mm | 1380*850*1250 |
Weight | kg | 500 |
Air Outlet Pipe Diameter | inch | ZG1¼" |
