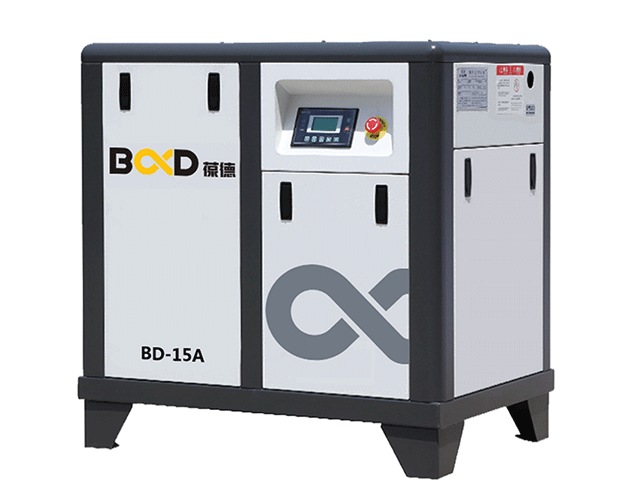

BD-15A
Product name：BD-15A
Product description：
- Product introduction
●The latest airend
●Perfect intelligent inverter technology
●Less maintenance and utilizing cost
●Lots of technology patents
| Model | Mpa | BD-15A |
| Free Air Delivery/Discharge Pressure(m³/min) | 0.7 | 1.8 |
| 0.8 | 1.6 | |
| 1.0 | 1.3 | |
| 1.25 | 1.0 | |
| Ambient Temperature | ℃ | -5~+40℃ |
| Cooling Model | Air-Cooling | |
| Discharge Temperature | ℃ | ≤Environment Temp+10℃(Air-Cooling) ＜40℃(Water-Cooling) |
| Lubricant | Liter | 12 |
| Noise | dB(A) | 66±2 |
| Drivin way | Belt drive | |
| Electricity | 220V/380V/415/3ph/50Hz/60Hz | |
| Power | KW | 11 |
| Straing Method | Y-△Starter | |
| Dimension(Length*Width*Height) | mm | 1100*710*980 |
| Weight | kg | 327 |
| Air Outlet Pipe Diameter | inch | ZG1" |
